S-03For IP attorneys, design studios and manufacturersNew service
3D and video representations for EU design filings
Since 1 July 2026 an EU design can be represented with a 3D file (STL or OBJ) or an MP4 video. The technical requirements are strict. From your existing CAD or STL file I prepare the representations and check every file against the limits.
Who it is for · IP attorneys, design studios and manufacturers filing EU designs.
| New representation | 3D (STL/OBJ) and video (MP4), since 1 July 2026 |
|---|---|
| Technical rules | EUIPO Decision EX-26-03, Article 8 |
| Input | STL, multiple parts are fine; STEP after conversion |
| Output | up to 10 JPEG views, 1 STL, 1 MP4, draft description, check sheet |
| Price | EUR 69 per design |
| Status | New service, not yet used on a client filing |
What I do not do. no legal advice, and I do not decide what to protect; no novelty searches, no legal opinions; I do not file anything with the EUIPO and do not represent anyone: you or your representative file.
1Why now
Why now
- 1.1Since 1 July 2026 the modernised EU design legal framework is fully applicable. EUIPO news ↗
- 1.2On 28 July 2026 the EUIPO published the first EU designs represented using video and 3D. EUIPO news, 28 July 2026 ↗
- 1.3The files have precise limits: JPEG at most 2 MB and 10 files, STL/OBJ/MP4 at most 20 MB, file names at most 25 characters, progressive JPEGs are not accepted. EUIPO Decision EX-26-03 (PDF) ↗
2How it works
01
CAD / STL
your existing production file
02
mesh cleanup
centred, grounded, watertight
03
render
views, STL, MP4
04
check sheet
every file, every limit
2.1
Send the file
You send the CAD or STL file of the design, and tell me if colour or material is part of the design.
2.2
Representations
Views at the same scale and lighting on a neutral background, a cleaned STL, and a 360 degree rotating video without sound.
2.3
Check and hand over
Every measurable requirement of every file, with value and limit. The EUIPO accepts only one representation type per design, so the three folders are alternatives and you choose.
3Scope
What I do
- static views: up to 10 JPEGs, same scale and lighting, clean background, no text or other objects, 1600 x 1600 px, 300 DPI, non-progressive
- dynamic: 1 cleaned STL (centred, grounded, watertight mesh), under 20 MB
- animated: 1 rotating MP4, H.264, 24-30 fps, no audio, under 20 MB
- draft description in English and Hungarian, under 100 words, visible features only
- check sheet: every file, every requirement, with SHA-256 checksums
- one revision round (choice of views, background, lighting, rotation angle)
- white-label files without my logo for IP firms
What I do not do
- no legal advice, and I do not decide what to protect
- no novelty searches, no legal opinions
- I do not file anything with the EUIPO and do not represent anyone: you or your representative file
- the files have not yet been tried in the EUIPO filing interface; compliance is based on the text of EX-26-03 Article 8 and on measurements
- an STL carries shape only, not colour or material; if colour is part of the design, static or video representation is the right choice
4Sample

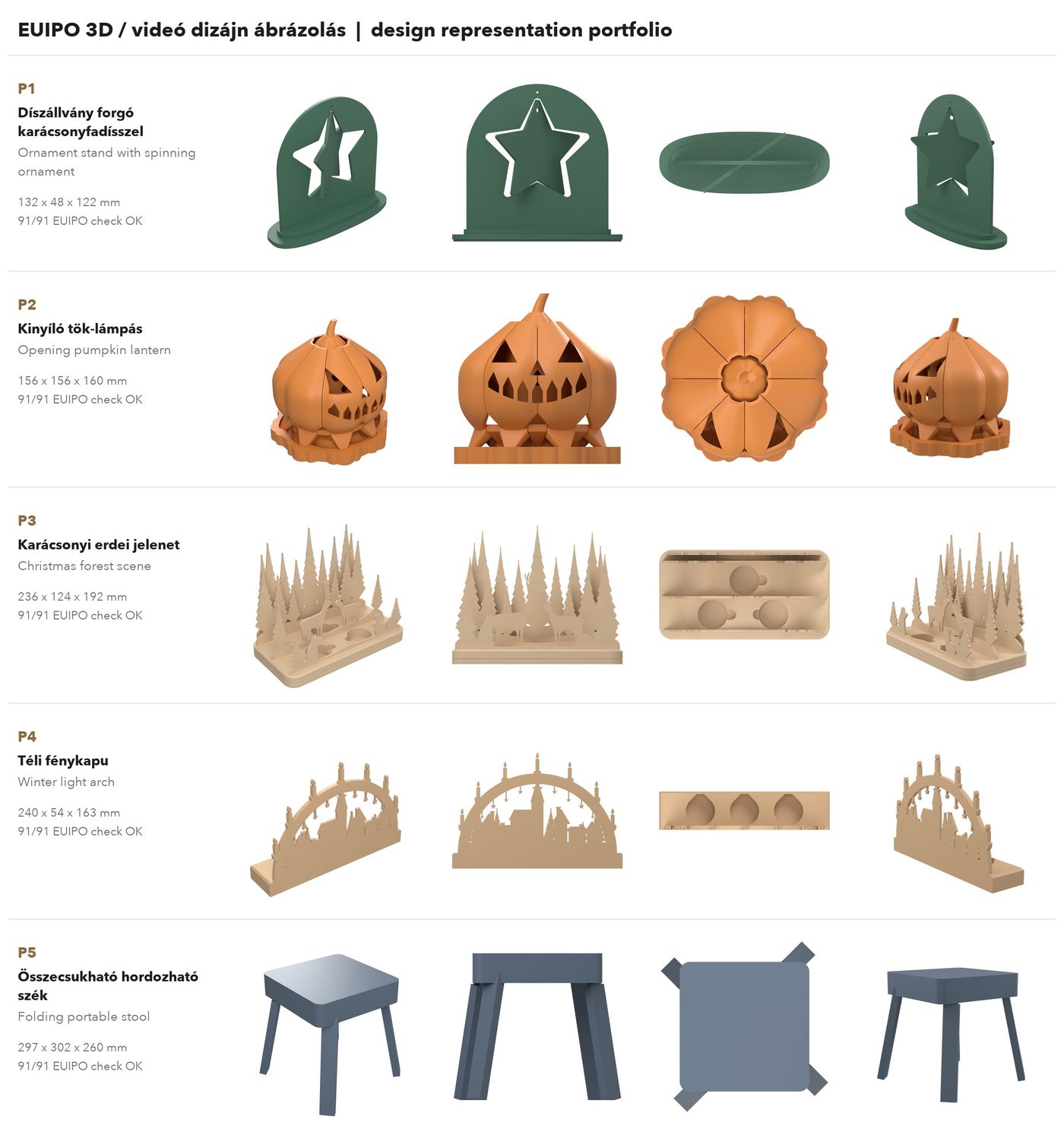

Sample portfolio: 5 of our own designs
The five objects below are our own designs, used here as samples; none of it is client material. Each has a full representation package, and each passed the 91-point check against the requirements of EUIPO Decision EX-26-03.
- per design: 10 JPEG views (1600 x 1600 px, 300 DPI), 1 cleaned STL, 1 rotating MP4
- 5 x 91 checks, 0 failures
- every mesh watertight, with real bounding box dimensions
- showreel: H.264, 1280 x 720, 37 s, no audio
- P1 Ornament stand with spinning Christmas ornament132 x 48 x 122 mm, 2 bodies, 91/91 checks passed
- P2 Opening pumpkin lantern156 x 156 x 160 mm, 11 bodies, 91/91 checks passed
- P3 Christmas forest scene236 x 124 x 192 mm, 1 body, 91/91 checks passed
- P4 Winter light arch240 x 54 x 163 mm, 1 body, 91/91 checks passed
- P5 Folding portable stool297 x 302 x 260 mm, 5 bodies, 91/91 checks passed
Our own designs, used as samples, not client material. Not legal advice.
5Price
Representation package
EUR 69
Per design, fixed price.
- static views, STL and rotating MP4 (three alternatives)
- draft description in English and Hungarian
- check sheet for every file
- one revision round
No payment is taken on this site; orders are handled by email.
6FAQ
Do you have existing clients?
Not yet. This is a new service; the pipeline has run on our own products so far and has not been used on a client filing.
Which representation should I choose?
That is the applicant's or the representative's decision. The EUIPO accepts one representation type per design (static, dynamic or animated), so I deliver all three as alternatives.
What happens to the files I send?
Rendering runs locally, calls no external service and uploads nothing. Files are treated as confidential and deleted after the job on request.
7Primary sources
Deadlines and rules taken from the official sources, checked on 5 October 2026.
8Contact
Questions or orders
Write a few lines about the task to the address below. I reply with what I need from you and when it will be ready.
Misak Systems · Ottó Misák, software engineer, Hungary (EU)
